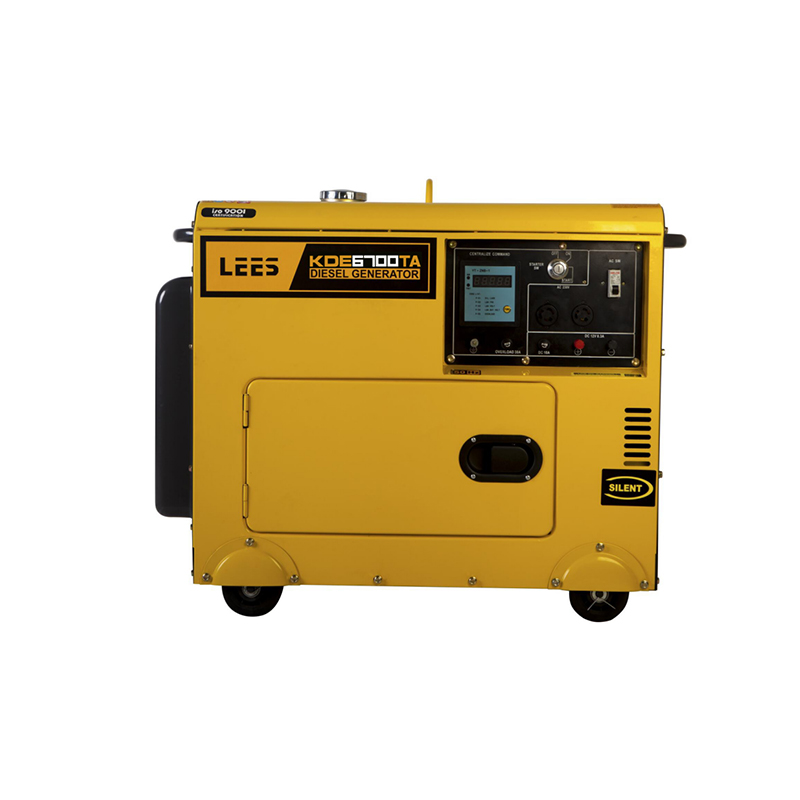

KDE6700T3/TA3

· Low running noise · Digital control panel · Advanced alternator winding · Low oil alarm system · Application of new AVR · Strong power


KDE6500X/E

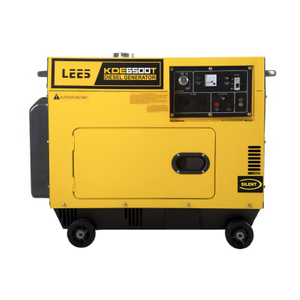

KDE6500T

KDE6700T/TA

KDE8500T/TA

KDE12EA

KDE12STA

KDE6500X3/E3

KDE6500T3

KDE6700T3/TA3

KDE8500T3/TA3

KDE12EA3

KDE12STA3



Features


Quieter and more powerful

A high efficiency combustion system ensures complete combustion. A large silencer dampens exhaust noise and engine sounds are contained in a double-walled structure and absorbed by a special liner.Strong power with an easy start air cooled engine.


Digital Control panel

All operating functions of the generator sets are on the panel. A digital readout displays operating parameters in real time such as output voltage and amperage. Circuit breakers protect the generator from

overloads.


Running quickly

A convenient electric starter gets the KDE series generators up and running quickly.


Delivering the power you need

Powerful, flexible, versatile, reliable, durable; LEES Generators have it covered on every level.


Easily portable

An open frame configuration means it’s easy to handle and store when not in use.


Wide application

Various models are available to meet all customer requirements.



KDE6700T3/TA3

Generator




Rated frequency

Hz

50

60

Rated output

KVA

5.5

6.3

Max. output

kVA

6

7

Rated Voltage

V

230/400

240/416

Rated current

A

7.9

8.7

Rated rotation speed

rpm

3000

3600

Phase NO.


Three phase four line,  "Y"  connection

Power factor


0.8(lag)

Insulation Grade


B

Pole number


2

Excitation mode


Self-excitation and constant voltage(AVR

Panel Type


T3: General Panel, TA3: Digital Panel

Voltagge

V

230/400

240/416

Receptacle


One single-phase & one three-phase receptacles

DC12V output


DC receptacle output

Overall dimension:     L×W×H

mm

915×547×742

Dry weight

Kg

182

Working assorting weight

Kg

198

Load Capacity in 20FT (units)


72

Load Capacity in 40HQ (units)


144

Noise level7m

dB(A)

72

Structure type


Silent

Engine



Engine Model


KD186FAE

Engine Type


Single cylinder, vertical,  four-stroke, direct injection

Cylinder NO.-bore×stroke

mm

1-86×72

Displacement

ml

418

Rated power

KW

5.7/3000

6.3/3600

Compression ratio


19:1

Rated rotation speed

r/min

3000

3600

Combustion system


Direct injection

Cooling system


Air cooled

Lubrication system


pressure splashed

Starting system


T3/TA3: Electric starter

Fuel type


0#(summer-10#(winter-35#(chillnessdiesel

Lube oil brand


SAE10W30above CD grade

Capacity of cooling water

L

Without

Lube capacity

L

1.65

Starting motor capacity

V-kW

12V  0.8kW

Charging generator capacity

V-A

12V  3A

Battery capacity

V-Ah

12V  36AH

Fuel consumption

g/kW.h

275.1

281.5

Fuel tank capacity

L

16

Continous running time

h

9.5
