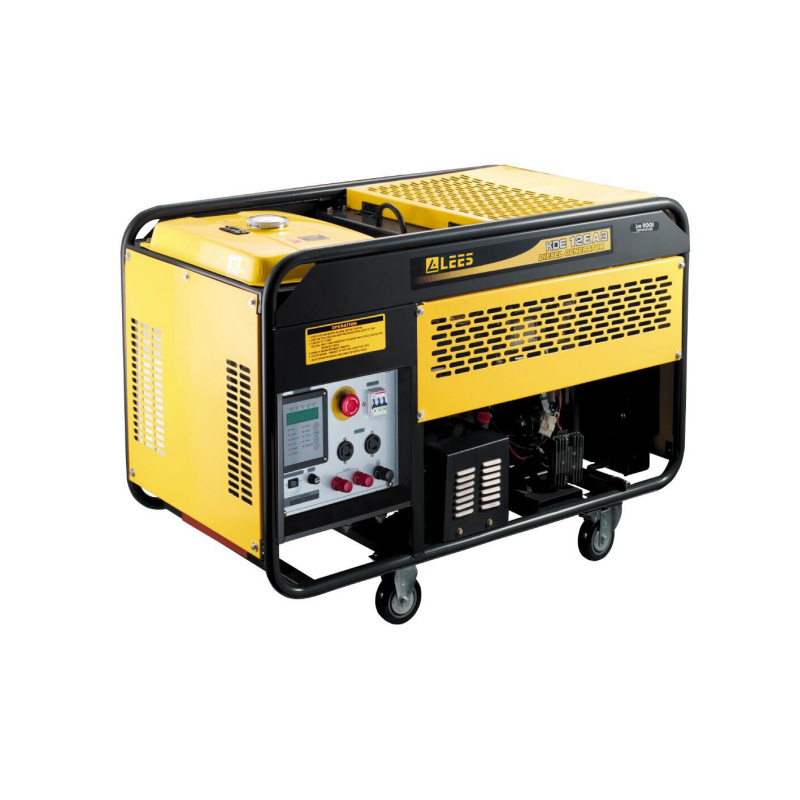

KDE12EA3

· Low running noise · Digital control panel · Advanced alternator winding · Low oil alarm system · Application of new AVR · Strong power


KDE6500X/E

KDE6500T

KDE6700T/TA

KDE8500T/TA

KDE12EA

KDE12STA

KDE6500X3/E3

KDE6500T3

KDE6700T3/TA3

KDE8500T3/TA3

KDE12EA3

KDE12STA3



Features


Quieter and more powerful

A high efficiency combustion system ensures complete combustion. A large silencer dampens exhaust noise and engine sounds are contained in a double-walled structure and absorbed by a special liner.Strong power with an easy start air cooled engine.


Digital Control panel

All operating functions of the generator sets are on the panel. A digital readout displays operating parameters in real time such as output voltage and amperage. Circuit breakers protect the generator from

overloads.


Running quickly

A convenient electric starter gets the KDE series generators up and running quickly.


Delivering the power you need

Powerful, flexible, versatile, reliable, durable; LEES Generators have it covered on every level.


Easily portable

An open frame configuration means it’s easy to handle and store when not in use.


Wide application

Various models are available to meet all customer requirements.



KDE12EA3

Generator




Rated frequency

Hz

50

60

Rated output

KVA

11

11.5

Max. output

kVA

12

12.5

Rated Voltage

V

230/400

240/416

Rated current

A

14.5

16

Rated rotation speed

rpm

3000

3600

Phase NO.


Three

Power factor


0.8(lag)

Insulation Grade


B

Pole number


2

Excitation mode


Self-excitation and constant voltage(AVR

Panel Type


Digital Panel

Voltagge

V

230/400

240/416

Receptacle


Two single-phase receptacles

DC12V output


Connection pole output

Overall dimension:     L×W×H

mm

1060*660*880

Dry weight

Kg

200

Working assorting weight

Kg

235

Load Capacity in 20FT (units)


32

Load Capacity in 40HQ (units)


92

Noise level7m

dB(A)

85

Structure type


Open frame

Engine



Engine Model


KD2V80

Engine Type


V-twin, water-cooled, four-stroke, swirl type

Cylinder NO.-bore×stroke

mm

2-80*79

Displacement

ml

794

Rated power

KW

12.5/3000

14.5/3600

Compression ratio


23:1

Rated rotation speed

r/min

3000

3600

Combustion system


-

Cooling system


Water cooled

Lubrication system


Pressure splashed

Starting system


Electric starter

Fuel type


0(summer), -10(winter), -35(chillness) diesel

Lube oil brand


CD grade or SAE10W-30, 15W-40

Capacity of cooling water

L

3.5

Lube capacity

L

2.27

Starting motor capacity

V-kW

12V  1.4kW

Charging generator capacity

V-A

12V  20A

Battery capacity

V-Ah

12V  45AH

Fuel consumption

g/kW.h

≤340


Fuel tank capacity

L

25

Continous running time

h

7
