PRODUCTS

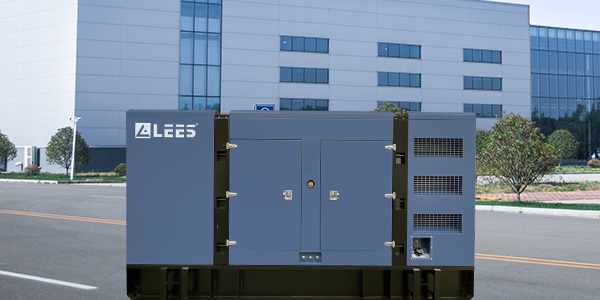

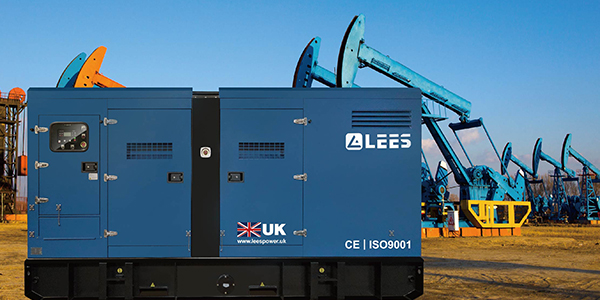

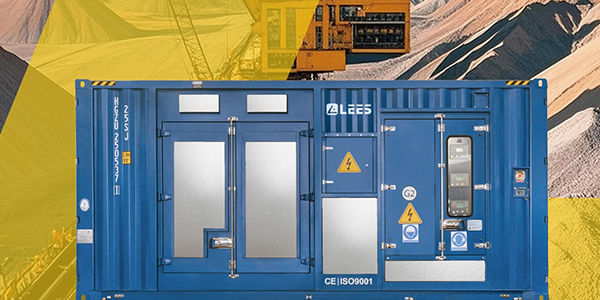

Volvo Series

• Powered by Volvo
• Standby Power 165-750 kVA
• Open/Silent/Trailer type is optional


Benefits

LEES Volvo generators have a wide power range from 165~750kVA. The generators are widely used in industrial, commercial, backup, primary power source and outdoors project work and so on.


LEES generators


● Performance: Best engines ensure the with best performance and the strongest power, which make sure gensets work smoothly.

● Customer service: Reliable global after sale service, which make sure customers have a worry free experience.

● Optimization: LEES make some improvements for engines, which make the engines more suitable for generators.

● Silence: LEES take use of two-step silencing with 5 cm thickness and high density mute cotton to low the noise. The generators could reach at 60 dbA/7m without loading and 62-65 dbA/7m with full loading.

● Elegance: LEES generators appearance is very fashionable and beautiful, with bright yellow color, which makes the gensets high recognition. Waterproof canopy use 2mm cold-rolled steel with powder painting to produce.

● Intelligence: LEES use world famous brand Deepsea controller to control and protect the genset. Push-to-start is very convenient.

● Design and Details: Considerate design is the aims and objectives. To make customers satisfied and optimize customers' experience, LEES focus on every detail and review every improvement at regular intervals. We will review the generator at least 3 times before the product get in market. At present, LEES have make the changes and improvements on anti-collision rubber, stainless screws, doors, baseframe, wiring ways, oil drain valve and so on.

Features of Volvo engines

Volvo Penta is a world-leading supplier of power solutions to marine and industrial applications. Driven by innovation, our close cooperation with our customers and our century-long experience, we supply comprehensive solutions that are made to move emotions, people, businesses and societies.


volvo


 Features and Benefits of Volvo engine

● Accessory drive
  Single Poly Vee belt drive for fan, alternator and water pump, with self-tensioning idle for minimum maintenance

● Complete rebuild ability
  Cylinder block has multiple rebore capability. Service cylinder sleeves and valve guides are also available

● Low fuel consumption
  Excellent fuel consumption with B.S.F.C 215g/kw.h

● Cold start capability
  Minimum ambient temperature for unaided cold start -12℃
  Minimum ambient temperature for aided (with coolant heater) cold start -35℃


volvo-engine

Features of Alternator


doosan alternator


  • 12 wire reconnectable stator/terminal arrangement

  •  Easy access for installation and maintenance

  •  2/3 pitch winding as standard, to avoid excessive neutral currents

  •  Class H insulation with severe environmental protection as standard

  •  Built to conform with all leading industrial and marine standards

  •  460 AVR as standard with 1.5% regulation and 2 phase sensing

  •  IP23 as standard


Features of DSE Controller


DSE


  •  The DSE7320 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.

  •  Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC and via SMS test alerts (with external modem).

  •  The DSE7320 will also monitor the mains (utility) supply. The modules include USB, RS232 and RS485 ports as well as dedicated DSENet terminals for system expansion.


DSE


Optional

Enlarged-based-fuel-tank

Enlarged based fuel tank


External-fuel-tank

External fuel tank


Electric-engine-heater

Electric engine heater

Fuel-water-separator

Fuel water separator


Battery-charger

Battery charger


ATS

ATS

Other Details


Emergency-stop-button

Emergency stop button


Forklift-hole

Forklift hole


Fuel-output

Fuel output

Air-intake

Air-intake


LEES

LEES


Rust-proof-door-lock

Rust proof door lock

Rust-proof-hinge

Rust proof hinge


Nameplate

Nameplate


Ground-terminal

Ground-terminal

Lifting-hole

Lifting hole


Control-system

Control system


LEES

LEES

ABB-Breaker

ABB Breaker


Control-cabinet

Control cabinet


Shock-absorber

Shock absorber

technical-charts


technical-charts



GensetModel

StandbyPower

PrimePower

VolvoEngine

Specifications

KVA

KW

KVA

KW

LSV165S3

165

132

150

120

TAD731GE

PDF

LSV205S3

205

164

185

148

TAD732GE

PDF

LSV225S3

225

180

200

160

TAD733GE

PDF

LSV275S3

275

220

250

200

TAD734GE

PDF

LSV350S3

350

280

318

254

TAD1341GE

PDF

LSV385S3

385

308

350

280

TAD1342GE

PDF

LSV415S3

415

332

377

302

TAD1343GE

PDF

LSV450S3

450

360

410

328

TAD1344GE

PDF

LSV505S3

505

404

460

368

TAD1345GE

PDF

LSV550S3

550

440

500

400

TAD1641GE

PDF

LSV655S3

655

524

595

476

TAD1642GE

PDF

LSV700S3

700

560

636

509

TWD1643GE

PDF

LSV770S3

770

616

700

560

TWD1645GE

PDF





GensetModel

StandbyPower

PrimePower

VolvoEngine

Specifications

KVA

KW

KVA

KW

LSV175S3-6

175

140

158

126

TAD731GE

PDF

LSV230S3-6

230

184

210

168

TAD732GE

PDF

LSV250S3-6

250

200

221

177

TAD733GE

PDF

LSV275S3-6

275

220

250

200

TAD734GE

PDF

LSV380S3-6

380

304

345

276

TAD1341GE

PDF

LSV440S3-6

440

352

400

320

TAD1342GE

PDF

LSV455S3-6

455

364

415

332

TAD1343GE

PDF

LSV510S3-6

510

408

460

368

TAD1344GE

PDF

LSV630S3-6

630

504

575

460

TAD1641GE

PDF

LSV700S3-6

700

560

630

504

TAD1642GE

PDF

LSV763S3-6

763

610

695

556

TWD1643GE

PDF

LSV800S3-6

800

640

727

582

TWD1645GE

PDF





ATS

Product features:

ATS cabinet is mainly applied to the automatic switch between prime and emergency power, composing automatic emergency power supply system together with diesel generating sets. When prime power is cut off, it can automatically switch loads such as emergency illumination, security power and firefighting equipment to generating sets.

Continuous and rapid power supply is a basic and core function of ATS.

As long as there is power failure, ATS can ensure a continuous power supply.

When common power supply fails, ATS can quickly detect and timely automatically transfer.

When common power supply returns to normal, ATS will automatically transfer the load from the standby power supply to the common power supply.

When the power supply fails, ATS can automatically cut off power supply.


ats1

ATS


ats2

ATS


Application field:

It is applied in hospitals, banks, communication, airports, radio stations, hotels, factories and enterprises as the emergency power and fire extinguishing power.


ATS


ATS

Parallel Distribution Cabinet Control System


Parallel-Distribution-Cabinet-Control-System1

Parallel Distribution Cabinet Control System


Parallel-Distribution-Cabinet-Control-System2

Parallel Distribution Cabinet Control System


Parallel-Distribution-Cabinet-Control-System3

Parallel Distribution Cabinet Control System


The system can operate automatically or be controlled manually.

The system has the functions of automatic frequency detection, synchronizing detection and switch-on.

It is convenient to expand the capacity to satisfy the need of increasing load.

It can be used together with multiple generating sets (32 parallel generating sets max.) to control multiple diesel generating sets for automatic synchronization.

It offers stable frequency and voltage and can bear large-capacity load impact, achieving reliable supply, centralized management and more flexible power allocation.


Parallel-Distribution-Cabinet-Control-System


Parallel-Distribution-Cabinet-Control-System

Mobile Trailer

LEES trailer type generators are easy to move and could apply a wide range. Easily moving properties makes them especially suitable for construction sites, road and railway construction and temporary electricity utilization.

Mobile Trailer

Mobile Trailer


Mobile Trailer

Mobile Trailer


Mobile Trailer

Mobile Trailer


  • Adopt Cummins, Perkins, Doosan, MTU and Kubota engines as power source, which makes generators' performance stable.

  • The genset design is researched and developed by LEES professional team.

  • The unit has the characteristics of high mobility, low center of gravity and safe braking.

  • Beautiful appearance, excellent manufacturing process.

  • Trailer type design has the characteristics of mobile convenient and flexible operation.

  • Genset adopts silent type canopy to ensure good sealing and safety. At the same time, it is used more quietly and comfortably.

  • The unit is equipped with a hand brake, to ensure the safety in driving. Hydraulic support device can guarantee the stability of the trailer units when using.

  • Split maintenance doors design is very convenient for operation, maintenance.

Spare parts


Engine-accessories

Engine accessories


Battery

Battery


Electronic-componet

Electronic componet


Filter

Filter


coolant

Coolant


Lubricant

Lubricant


  • Brand accessories, Quality assurance
    LEES provides you with the original brand engine, alternator and other spare parts, the quality is more reliable.

  • Best solutions
    LEES will provide you best solutions for spare parts, because we have most experienced technical team and after-sale service team. Quickly intuitive query by 2D/3D makes sure requested spare parts more accurate.

  • 24-hour Service
    We understand your needs and difficulties. Hence LEES after-sales team opened 24-hour service hotline to help you solve any problems.You can contact lees@leespower.com for help.

  • The Most Efficient Transport
    LEES maintains good cooperation with DHL, TNT etc. international express company. In case of urgent express, LEES promises sending out within 48 hours, in the shortest time to reach your side. No matter when and where, no matter what you need, LEES will provide you with the highest quality accessories.
