PRODUCTS

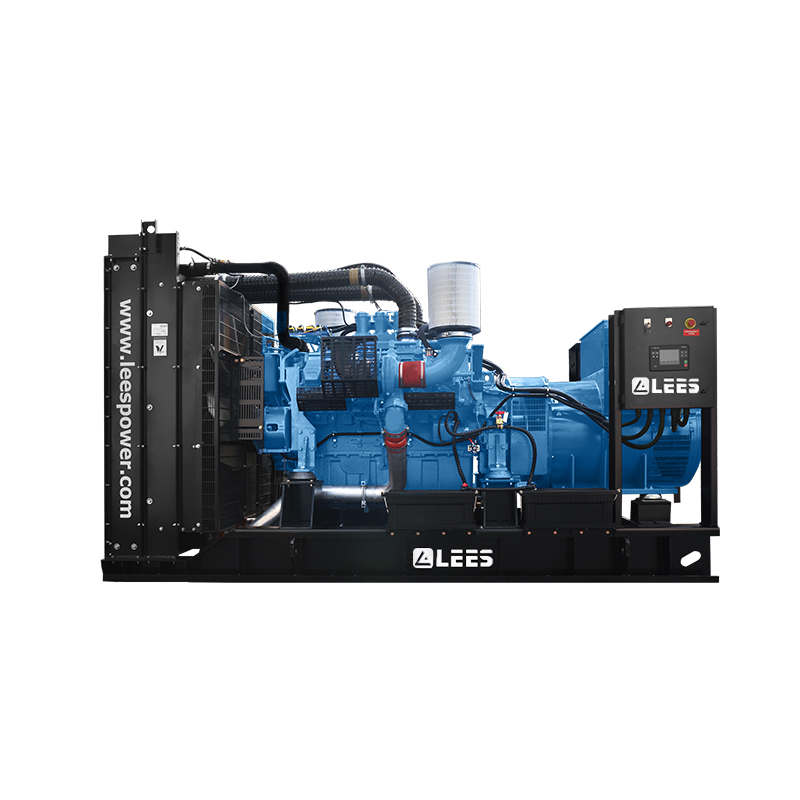

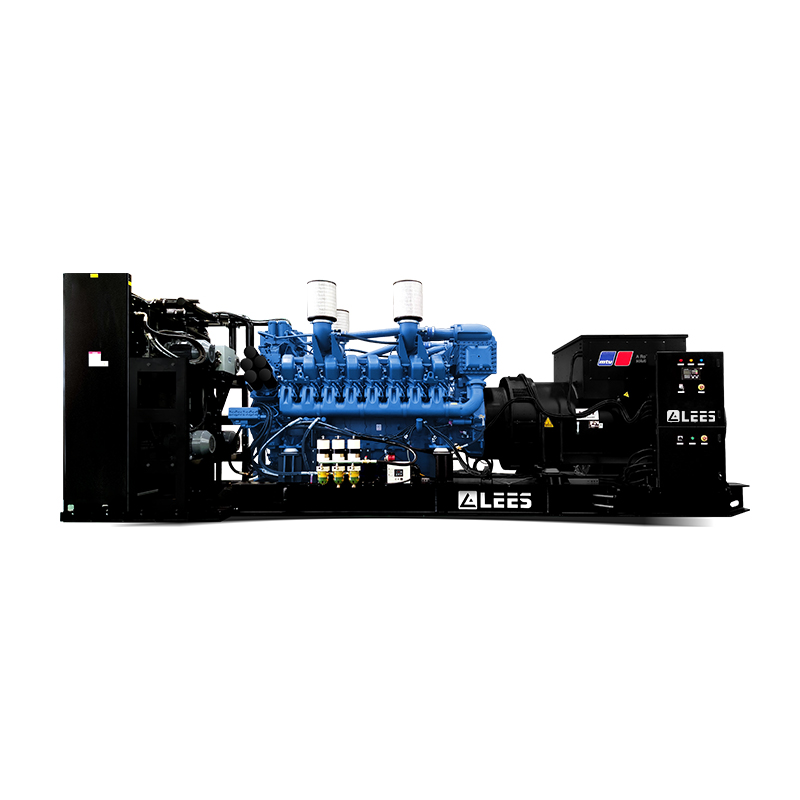

MTU Series

• Powered by MTU
• Standby Power 460-3300 kVA
• Open/Silent/Trailer type is optional


Benefits

LEES MTU generators have a wide power range from 300~3750kVA. The generators are widely used in industrial, commercial, backup, primary power source and outdoors project work and so on.


LEES generators


● Performance: Best engines ensure the with best performance and the strongest power, which make sure gensets work smoothly.

● Customer service: Reliable global after sale service, which make sure customers have a worry free experience.

● Optimization: LEES make some improvements for engines, which make the engines more suitable for generators.

● Silence: LEES take use of two-step silencing with 5 cm thickness and high density mute cotton to low the noise. The generators could reach at 60 dbA/7m without loading and 62-65 dbA/7m with full loading.

● Elegance: LEES generators appearance is very fashionable and beautiful, with bright yellow color, which makes the gensets high recognition. Waterproof canopy use 2mm cold-rolled steel with powder painting to produce.

● Intelligence: LEES use world famous brand Deepsea controller to control and protect the genset. Push-to-start is very convenient.

● Design and Details: Considerate design is the aims and objectives. To make customers satisfied and optimize customers' experience, LEES focus on every detail and review every improvement at regular intervals. We will review the generator at least 3 times before the product get in market. At present, LEES have make the changes and improvements on anti-collision rubber, stainless screws, doors, baseframe, wiring ways, oil drain valve and so on.

Features of MTU engines

MTU Daimler - Benz Group of Companies, is the world's leading diesel engine manufacturer.  LEES MTU series high-power generator sets, powered by MTU electronic injection diesel engine, which will get 24 hour engine technical, after sale, parts support from more than 650 MTU dealer and service agent around the globe.


mtu


 Features and Benefits of MTU engine

● Accessory drive
  Single Poly Vee belt drive for fan, alternator and water pump, with self-tensioning idle for minimum maintenance

● Complete rebuild ability
  Cylinder block has multiple rebore capability. Service cylinder sleeves and valve guides are also available

● Low fuel consumption
  Excellent fuel consumption with B.S.F.C 215g/kw.h

● Cold start capability
  Minimum ambient temperature for unaided cold start -12℃
  Minimum ambient temperature for aided (with coolant heater) cold start -35℃

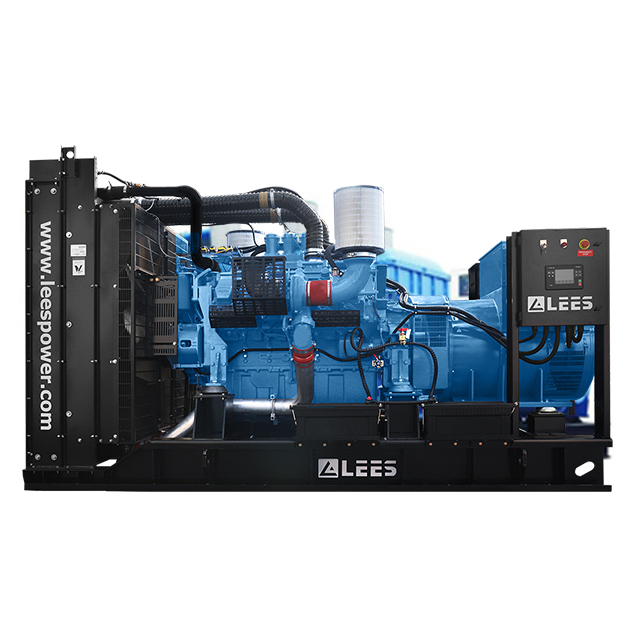

Features of LEES MTU Open generator


MTU-open-type1


  • Designed and manufactured in facilities certified to standards ISO 9001:2008

  • Verified product design, quality and performance integrity

  • Cutting-edge emissions control

  • Superior on-site specific de-rating behavior due to state-of-the art engine controller with engine site condition management system

  • Outstanding fuel economy

  • Best in class fuel economy due to highly efficient common rail fuel injection system

  • Advanced monitoring & communications Wide range of applications available from island operation to mains parallel operation

  • Compliant with industry codes & standards The generator set fulfills performance per ISO 8528 and offers 100% load acceptance according to NFPA 110

  • Permanent magnet excitation system for generator as standard for improved transient response

  • Best-in-class reliability and availability

  • Optimized maintenance intervals

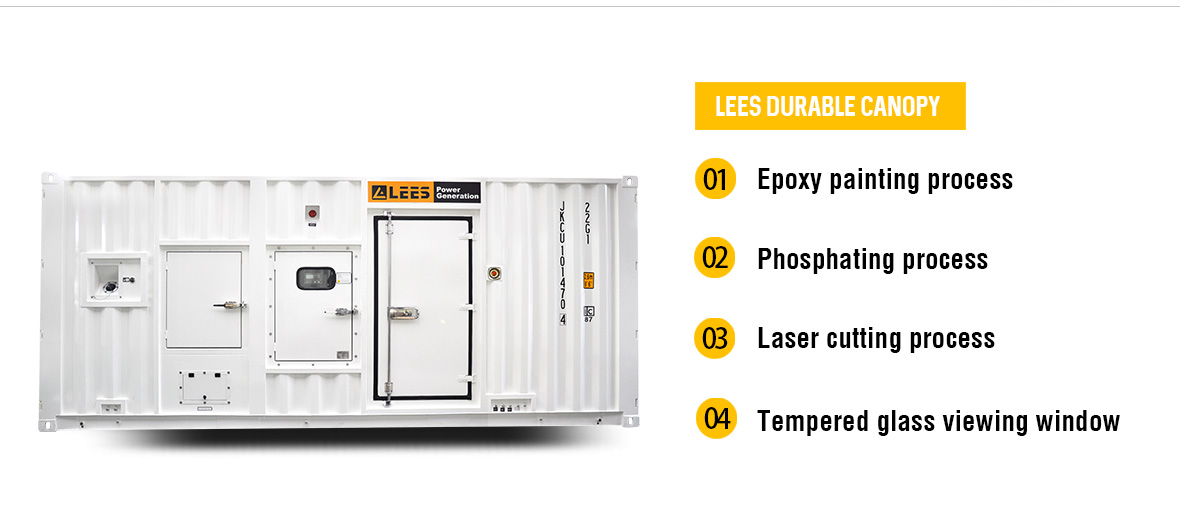

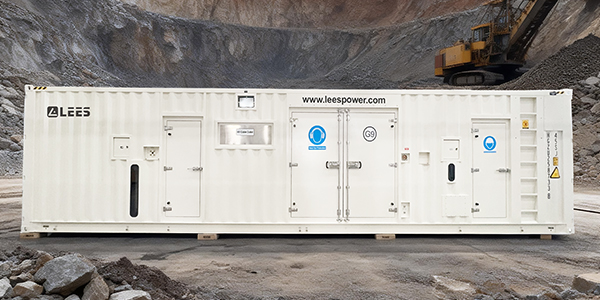

Benefits of LEES MTU Silent Generator


mtu-silent-type


  • Typical color match “yellow with black”, which is bright and attractive

  • Cover of canopy use the design of a slight angle, which is unique and modern.

  • Higher “panzer base frame” design is strong and durable, which has high industrial traits.

  • Intelligent control panel is located in the same side of maintenance door, which is more convenient for customer to check and maintain.

  • The rainproof canopy is used 2 mm thickness cold rolled steel, strong and durable, which sound insulation effect is good. The surface of the canopy is used powder painting, which production workmanship is rigorous.

  • Adopt two-step silencing technology with high density sound-absorbing cotton to reduce running noise.

  • Humanized design fully consider the customer experience and improve its service satisfaction.


Features of DSE Controller


DSE


  • The DSE7320 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.

  • Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote

    PC and via SMS test alerts (with external modem).

  • The DSE7320 will also monitor the mains (utility) supply. The modules include USB, RS232 and RS485 ports as well as dedicated DSENet terminals for system expansion.



DSE


Optional

Enlarged-based-fuel-tank

Enlarged based fuel tank


External-fuel-tank

External fuel tank


Electric-engine-heater

Electric engine heater

Fuel-water-separator

Fuel water separator


Battery-charger

Battery charger


ATS

ATS

Other Details


Emergency-stop-button

Emergency stop button


Forklift-hole

Forklift hole


Fuel-output

Fuel output

Air-intake

Air-intake


LEES

LEES


Rust-proof-door-lock

Rust proof door lock

Rust-proof-hinge

Rust proof hinge


Nameplate

Nameplate


Ground-terminal

Ground-terminal

Lifting-hole

Lifting hole


Control-system

Control system


LEES

LEES

ABB-Breaker

ABB Breaker


Control-cabinet

Control cabinet


Shock-absorber

Shock absorber


technical-charts





GensetModel

StandbyPower

PrimePower

MTU-C-3BEngine

Specifications

KVA

KW

KVA

KW

LSM650S3

-

-

650

520

12V2000G25

PDF

LSM800S3

-

-

800

640

12V2000G65

PDF

LSM900S3

-

-

900

720

16V2000G25

PDF

LSM1000S3

-

-

1000

800

16V2000G65

PDF

LSM1100S3

-

-

1100

880

18V2000G65

PDF

LSM1610S3

-

-

1610

1288

12V4000G23

PDF

LSM1800S3

-

-

1800

1440

12V4000G63

PDF

LSM2050S3

-

-

2050

1640

16V4000G23

PDF

LSM2250S3

-

-

2250

1800

16V4000G63

PDF

LSM2500S3

-

-

2500

2000

20V4000G23

PDF

LSM2750S3

-

-

2750

2200

20V4000G63

PDF

LSM3000S3

-

-

3000

2400

20V4000G63L

PDF



GensetModel

StandbyPower

PrimePower

MTU-C-3DEngine

Specifications

KVA

KW

KVA

KW

LSM1000S3

1000

800

-

-

16V2000G25

PDF

LSM1100S3

1100

880

-

-

16V2000G65

PDF

LSM1250S3

1250

1000

-

-

18V2000G65

PDF

LSM1800S3

1800

1440

-

-

12V4000G23

PDF

LSM2000S3

2000

1600

-

-

12V4000G63

PDF

LSM2250S3

2250

1800

-

-

16V4000G23

PDF

LSM2500S3

2500

2000

-

-

16V4000G63

PDF

LSM2780S3

2780

2224

-

-

20V4000G23

PDF

LSM3050S3

3050

2440

-

-

20V4000G63

PDF

LSM3300S3

3300

2640

-

-

20V4000G63L

PDF



GensetModel

StandbyPower

PrimePower

MTU-G-3BEngine

Specifications

KVA

KW

KVA

KW

LSM1400S3-B

-

-

1400

1120

12V4000G14RF

PDF

LSM1610S3-B

-

-

1610

1288

12V4000G14F

PDF

LSM1800S3-B

-

-

1800

1440

12V4000G24F

PDF

LSM2100S3-B

-

-

2050

1640

16V4000G14F

PDF

LSM2250S3-B

-

-

2250

1800

16V4000G24F

PDF

LSM2500S3-B

-

-

2500

2000

20V4000G14F

PDF

LSM2800S3-B

-

-

2800

2240

20V4000G24F

PDF

LSM3000S3-B

-

-

3000

2400

20V4000G34F

PDF

LSM3250S3-B

-

-

3250

2600

20V4000G44F

PDF



GensetModel

StandbyPower

PrimePower

MTU-G-3DEngine

Specifications

KVA

KW

KVA

KW

LSM1800S3-D

1800

1440

-

-

12V4000G74F

PDF

LSM2000S3-D

2000

1600

-

-

12V4000G84F

PDF

LSM2250S3-D

2250

1800

-

-

16V4000G74F

PDF

LSM2500S3-D

2500

2000

-

-

16V4000G84F

PDF

LSM2800S3-D

2780

2224

-

-

20V4000G64F

PDF

LSM3100S3-D

3100

2480

-

-

20V4000G74F

PDF

LSM3300S3-D

3300

2640

-

-

20V4000G84F

PDF

LSM3600S3-D

3600

2880

-

-

20V4000G94F

PDF





GensetModel

StandbyPower

PrimePower

MTU-C-3BEngine

Specifications

KVA

KW

KVA

KW

LSM815S3-6

-

-

815

652

12V2000G45

PDF

LSM930S3-6

-

-

930

744

12V2000G85

PDF

LSM1000S3-6

-

-

1000

800

16V2000G45

PDF

LSM1160S3-6

-

-

1160

928

16V2000G85

PDF

LSM1370S3-6

-

-

1370

1096

18V2000G85

PDF

LSM1730S3-6

-

-

1730

1384

12V4000G43

PDF

LSM1975S3-6

-

-

1975

1580

12V4000G83

PDF

LSM2315S3-6

-

-

2315

1852

16V4000G43

PDF

LSM2600S3-6

-

-

2600

2080

16V4000G83

PDF

LSM2850S3-6

-

-

2850

2280

20V4000G43

PDF

LSM3140S3-6

-

-

3140

2512

20V4000G83

PDF

LSM3465S3-6

-

-

3465

2772

20V4000G83L

PDF



GensetModel

StandbyPower

PrimePower

MTU-C-3DEngine

Specifications

KVA

KW

KVA

KW

LSM1020S3-6

1020

816

-

-

12V2000G85

PDF

LSM1160S3-6

1160

928

-

-

16V2000G45

PDF

LSM1280S3-6

1280

1024

-

-

16V2000G85

PDF

LSM1510S3-6

1510

1208

-

-

18V2000G85

PDF

LSM1965S3-6

1965

1572

-

-

12V4000G43

PDF

LSM2175S3-6

2175

1740

-

-

12V4000G83

PDF

LSM2615S3-6

2615

2092

-

-

16V4000G43

PDF

LSM2865S3-6

2865

2292

-

-

16V4000G83

PDF

LSM3140S3-6

3140

2512

-

-

20V4000G43

PDF

LSM3450S3-6

3450

2760

-

-

20V4000G83

PDF

LSM4000S3-6

4000

3200

-

-

20V4000G83L

PDF



GensetModel

StandbyPower

PrimePower

MTU-G-3BEngine

Specifications

KVA

KW

KVA

KW

LSM640S3-6B

-

-

640

512

12V1600G10S

PDF

LSM700S3-6B

-

-

700

560

12V1600G20S

PDF

LSM1750S3-6B

-

-

1750

1400

12V4000G14S

PDF

LSM2000S3-6B

-

-

2000

1600

12V4000G24S

PDF

LSM2315S3-6B

-

-

2315

1852

16V4000G14S

PDF

LSM2625S3-6B

-

-

2625

2100

16V4000G24S

PDF

LSM2875S3-6B

-

-

2875

2300

20V4000G14S

PDF

LSM3200S3-6B

-

-

3200

2560

20V4000G24S

PDF

LSM3500S3-6B

-

-

3500

2800

20V4000G44S

PDF



GensetModel

StandbyPower

PrimePower

MTU-G-3DEngine

Specifications

KVA

KW

KVA

KW

LSM2000S3-6D

2000

1600

-

-

12V4000G74S

PDF

LSM2200S3-6D

2200

1760

-

-

12V4000G84S

PDF

LSM2625S3-6D

2625

2100

-

-

16V4000G74S

PDF

LSM2875S3-6D

2875

2300

-

-

16V4000G84S

PDF

LSM3200S3-6D

3200

2560

-

-

16V4000G94S

PDF

LSM3500S3-6D

3500

2800

-

-

20V4000G74S

PDF

LSM4000S3-6D

4060

3248

-

-

20V4000G94S

PDF





ATS

Product features:

ATS cabinet is mainly applied to the automatic switch between prime and emergency power, composing automatic emergency power supply system together with diesel generating sets. When prime power is cut off, it can automatically switch loads such as emergency illumination, security power and firefighting equipment to generating sets.

Continuous and rapid power supply is a basic and core function of ATS.

As long as there is power failure, ATS can ensure a continuous power supply.

When common power supply fails, ATS can quickly detect and timely automatically transfer.

When common power supply returns to normal, ATS will automatically transfer the load from the standby power supply to the common power supply.

When the power supply fails, ATS can automatically cut off power supply.


ats1

ATS


ats2

ATS


Application field:

It is applied in hospitals, banks, communication, airports, radio stations, hotels, factories and enterprises as the emergency power and fire extinguishing power.


ATS


ATS

Parallel Distribution Cabinet Control System


Parallel-Distribution-Cabinet-Control-System1

Parallel Distribution Cabinet Control System


Parallel-Distribution-Cabinet-Control-System2

Parallel Distribution Cabinet Control System


Parallel-Distribution-Cabinet-Control-System3

Parallel Distribution Cabinet Control System


The system can operate automatically or be controlled manually.

The system has the functions of automatic frequency detection, synchronizing detection and switch-on.

It is convenient to expand the capacity to satisfy the need of increasing load.

It can be used together with multiple generating sets (32 parallel generating sets max.) to control multiple diesel generating sets for automatic synchronization.

It offers stable frequency and voltage and can bear large-capacity load impact, achieving reliable supply, centralized management and more flexible power allocation.


Parallel-Distribution-Cabinet-Control-System4


Parallel-Distribution-Cabinet-Control-System


Mobile Trailer

LEES trailer type generators are easy to move and could apply a wide range. Easily moving properties makes them especially suitable for construction sites, road and railway construction and temporary electricity utilization.

Mobile Trailer

Mobile Trailer


Mobile Trailer

Mobile Trailer


Mobile Trailer

Mobile Trailer


  • Adopt Cummins, Perkins, Doosan, MTU and Kubota engines as power source, which makes generators' performance stable.

  • The genset design is researched and developed by LEES professional team.

  • The unit has the characteristics of high mobility, low center of gravity and safe braking.

  • Beautiful appearance, excellent manufacturing process.

  • Trailer type design has the characteristics of mobile convenient and flexible operation.

  • Genset adopts silent type canopy to ensure good sealing and safety. At the same time, it is used more quietly and comfortably.

  • The unit is equipped with a hand brake, to ensure the safety in driving. Hydraulic support device can guarantee the stability of the trailer units when using.

  • Split maintenance doors design is very convenient for operation, maintenance.

Spare parts


Engine-accessories

Engine accessories


Battery

Battery


Electronic-componet

Electronic componet


Filter

Filter


coolant

Coolant


Lubricant

Lubricant


  • Brand accessories, Quality assurance
    LEES provides you with the original brand engine, alternator and other spare parts, the quality is more reliable.

  • Best solutions
    LEES will provide you best solutions for spare parts, because we have most experienced technical team and after-sale service team. Quickly intuitive query by 2D/3D makes sure requested spare parts more accurate.

  • 24-hour Service
    We understand your needs and difficulties. Hence LEES after-sales team opened 24-hour service hotline to help you solve any problems.You can contact lees@leespower.com for help.

  • The Most Efficient Transport
    LEES maintains good cooperation with DHL, TNT etc. international express company. In case of urgent express, LEES promises sending out within 48 hours, in the shortest time to reach your side. No matter when and where, no matter what you need, LEES will provide you with the highest quality accessories.



MTU-case

       Inquiry

Product Inquiry
       Related Products
Lees is a worldwide company
specialized in the manufacturing of a wide range of generator sets, from 8kVA to 4000kVA.

Company

Products

Information
  No.312 National highway,Huishan
       District, Wuxi,China, 214000
  lees@leespower.com
  0086-510-85168446
 2019 Wuxi Lees Power Company Limited
