Features

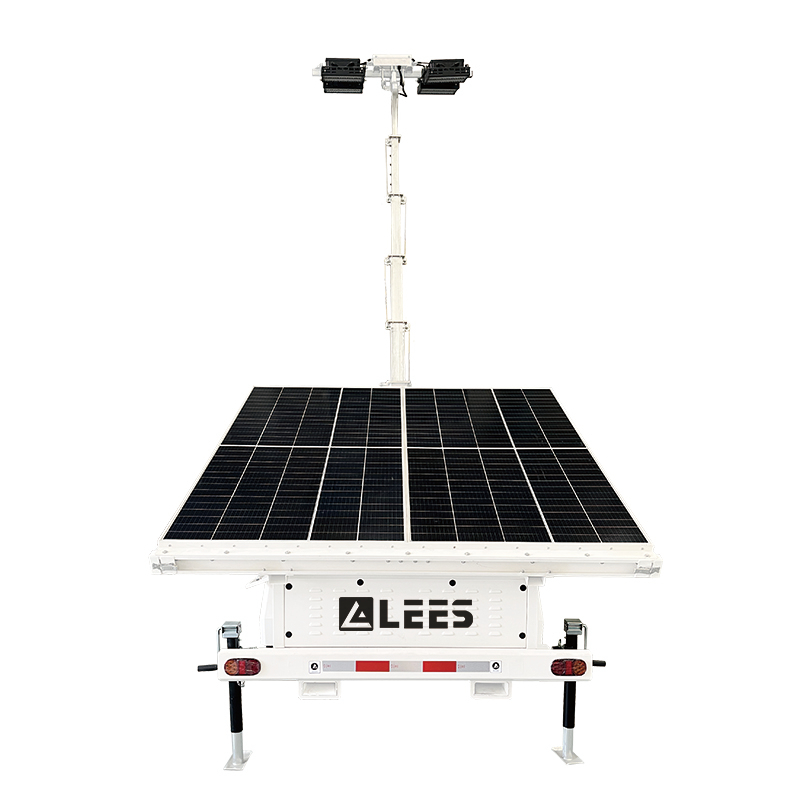

The solar photovoltaic mobile lighting tower applies renewable solar energy and LED lamps, which makes it brighter and more energy-saving than general ones. It excludes the inherent shortcomings of diesel lighting towers. Also, it features no operation cost, zero carbon emission, and doesn’t cause noise and pollution.
The mast can be extended and folded electrically, reaching 8.3M in height.
Trailer chassis can work at a speed of 80KM/H. Besides, the base has a forklift pocket to facilitate the movement under special circumstances.
Each LED lamp is equipped with a separate circuit breaker.
The high-performance energy storage lithium batteries group can work for 12.3 hours when fully charged.
Features
The solar photovoltaic mobile lighting tower applies renewable solar energy and LED lamps, which makes it brighter and more energy-saving than general ones. It excludes the inherent shortcomings of diesel lighting towers. Also, it features no operation cost, zero carbon emission, and doesn’t cause noise and pollution.
The mast can be extended and folded electrically, reaching 8.3M in height.
Trailer chassis can work at a speed of 80KM/H. Besides, the base has a forklift pocket to facilitate the movement under special circumstances.
Each LED lamp is equipped with a separate circuit breaker.
The high-performance energy storage lithium batteries group can work for 12.3 hours when fully charged.
Model | LT2500HTB |
Rated Power (LED Lamp) | 240W*4pcs |
System Voltage | 48VDC |
PV Panel | 505W*4pc |
Vertical Rotation Angle (PV Panel) | Fixed 15-20° |
Battery Type | Lithium Battery (with all-in-one inverter) |
Battery Capacity | 100AH |
Battery Quantity | 2pcs+1pcs |
Mast Driver | Electric (optional: Hydraulic type) |
Mast Height | 8.3m |
Horizontal Rotation Angle | 0-355° |
Standby Generator (Option) | / |
AC Output (Option) | 3KW |
Solar Charger | 48V50A |
AC Charger (Option) | / |
Solar System Charge Time | 6-8H |
Standby Generator Charge Time | / |
Lighting Discharge Time | 12.3H (full load) |
Trailer Speed | ≤80Km/H |
Loading Dimensions(L*W*H) | 2860*1150*2458mm |
Expanding Dimensions(L*W*H) | 3750*5410*7500mm |
Net Weight | 1180kgs |
Loading Units of 40'HQ | 4pcs |
Model | LT2500HTB |
Rated Power (LED Lamp) | 240W*4pcs |
System Voltage | 48VDC |
PV Panel | 505W*4pc |
Vertical Rotation Angle (PV Panel) | Fixed 15-20° |
Battery Type | Lithium Battery (with all-in-one inverter) |
Battery Capacity | 100AH |
Battery Quantity | 2pcs+1pcs |
Mast Driver | Electric (optional: Hydraulic type) |
Mast Height | 8.3m |
Horizontal Rotation Angle | 0-355° |
Standby Generator (Option) | / |
AC Output (Option) | 3KW |
Solar Charger | 48V50A |
AC Charger (Option) | / |
Solar System Charge Time | 6-8H |
Standby Generator Charge Time | / |
Lighting Discharge Time | 12.3H (full load) |
Trailer Speed | ≤80Km/H |
Loading Dimensions(L*W*H) | 2860*1150*2458mm |
Expanding Dimensions(L*W*H) | 3750*5410*7500mm |
Net Weight | 1180kgs |
Loading Units of 40'HQ | 4pcs |
